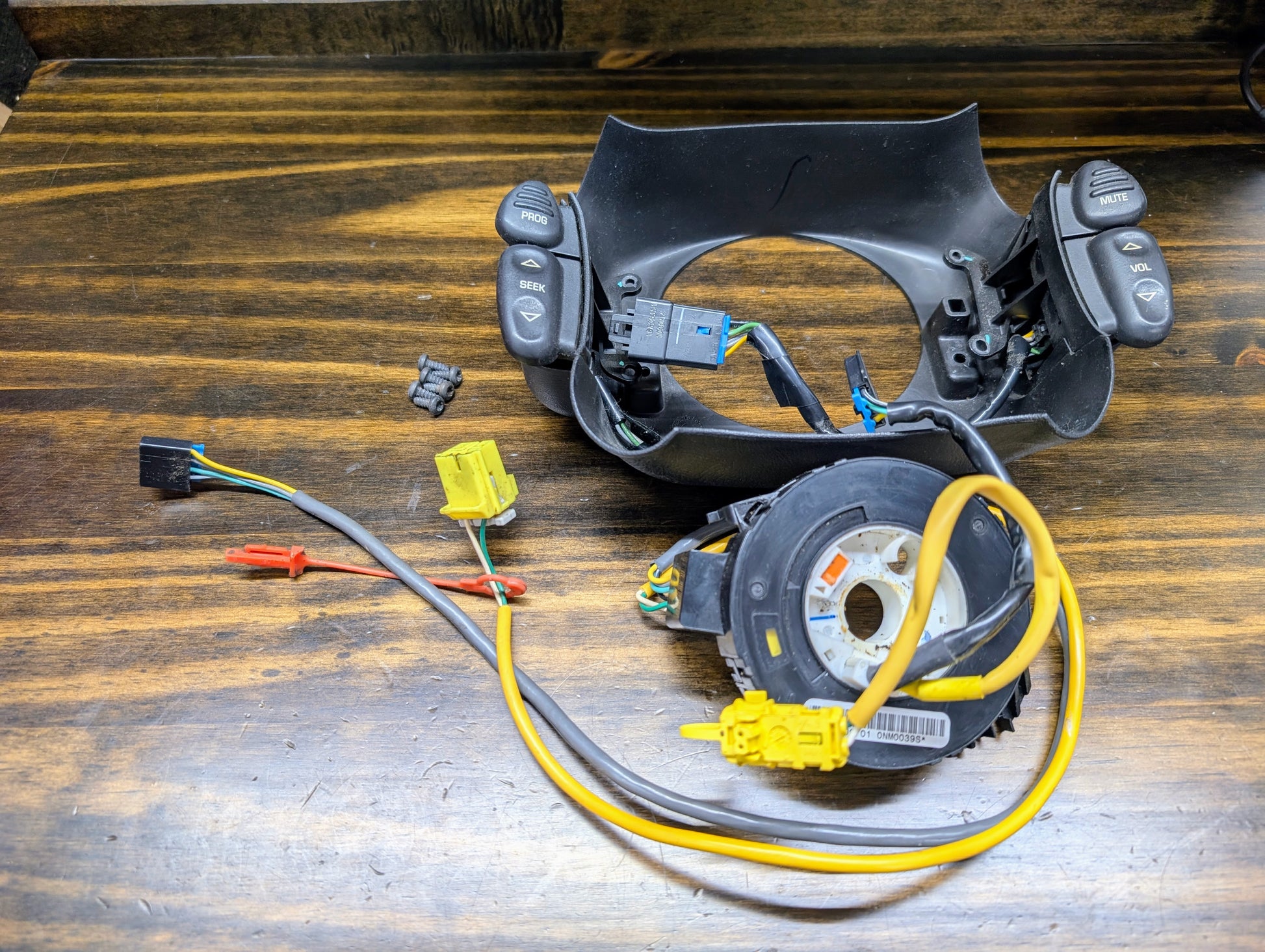

• General Motors KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10, Blazer, and more are disassembled on a wooden surface with buttons, connectors, clock spring, and wiring visible.

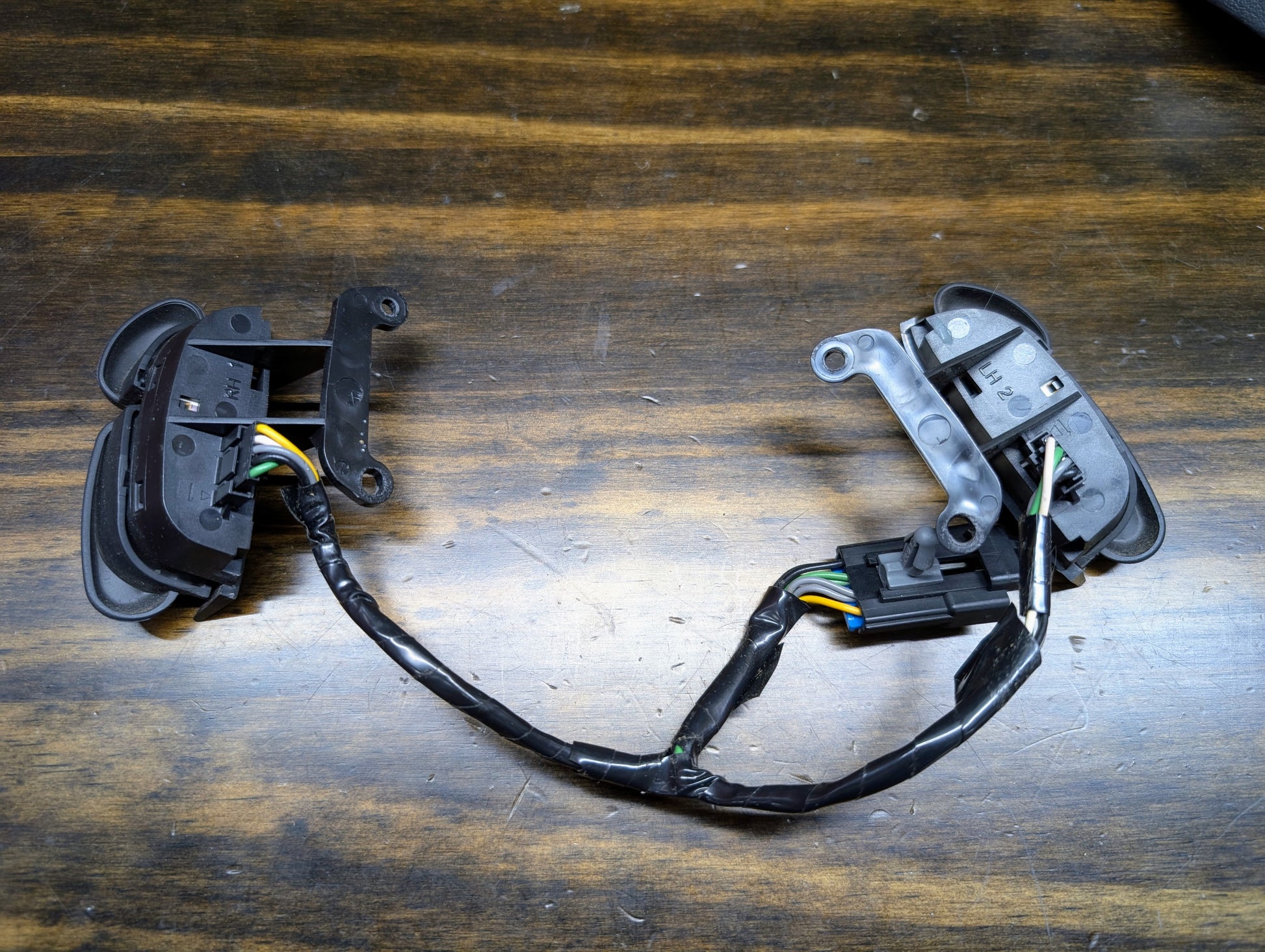

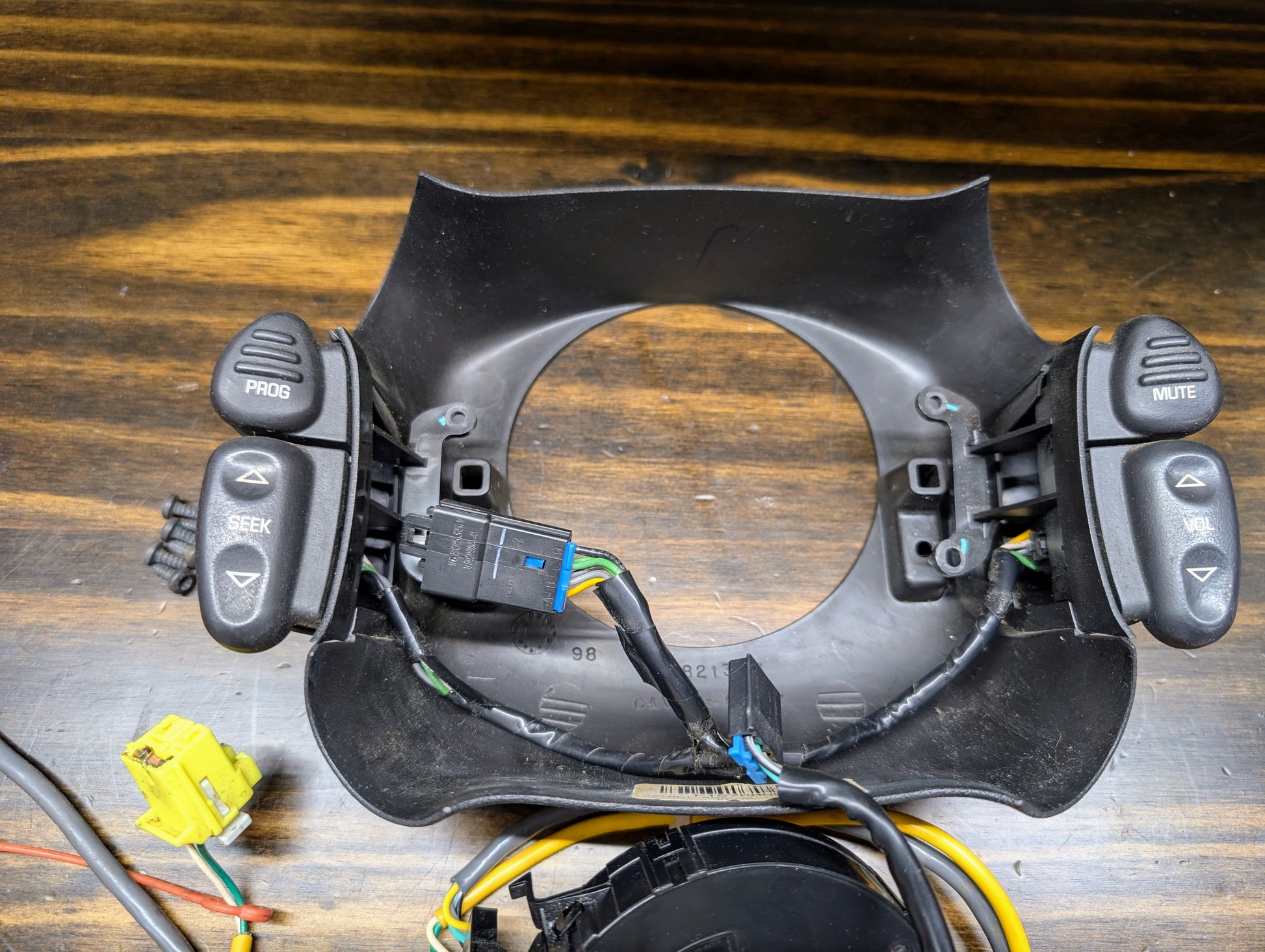

  • Close-up of General Motors KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10/Blazer, showing “PROG,” “SEEK,” “MUTE,” and “VOL” on a black module with exposed wires and connectors.
  • Close-up of General Motors KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10, Blazer, and more, plus screws and wires with black/yellow connectors on a wooden surface.
  • A close-up of the General Motors KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10, Blazer, and more, showing attached yellow and gray wires, barcode, connectors, on a wooden surface.
  • A black, textured, rounded General Motors steering wheel radio control button kit with mounting holes and an indented center, designed for 2004-2005 Chevy S10, Blazer, and more. Includes clock spring.
  • A KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10, Blazer, and more by General Motors rests disassembled on a wooden surface, with bundled wires connecting the components.
  • A General Motors KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10 and Blazer, with connectors, yellow and grey wires, and zip ties, is displayed on a wooden surface; the round black-and-white unit is central.
1 7

KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10, Blazer, and more

KIT Steering Wheel Black Button Radio Controls & Clock Spring for 2004-2005 Chevy S10, Blazer, and more

$135.00 USD
$135.00 USD
Sale Sold out
Shipping calculated at checkout.
Label

I have a set of the hard to find black button face Chevrolet Blazer Steering wheel radio control buttons & clock spring. Compatible clock spring part numbers are 26109701, or 26110521.

This is all the hard parts needed to upgrade any 2004 - 2005 S10, Blazer, Sonoma, Jimmy, Hombre, or Bravada to have steering wheel controls for the radio. Works with both factory leather and base steering wheels. Some trucks may already have the connector under the dash to connect with the radio, but if they don't that wiring will need to be added for this to function.

Clock spring and all wiring are intact. All circuits have been tested for the correct resistance. No cut or frayed wires. Very little if any wear on the button faces. May need some cleaning.

See pictures for details.

Included are the following OEM parts:

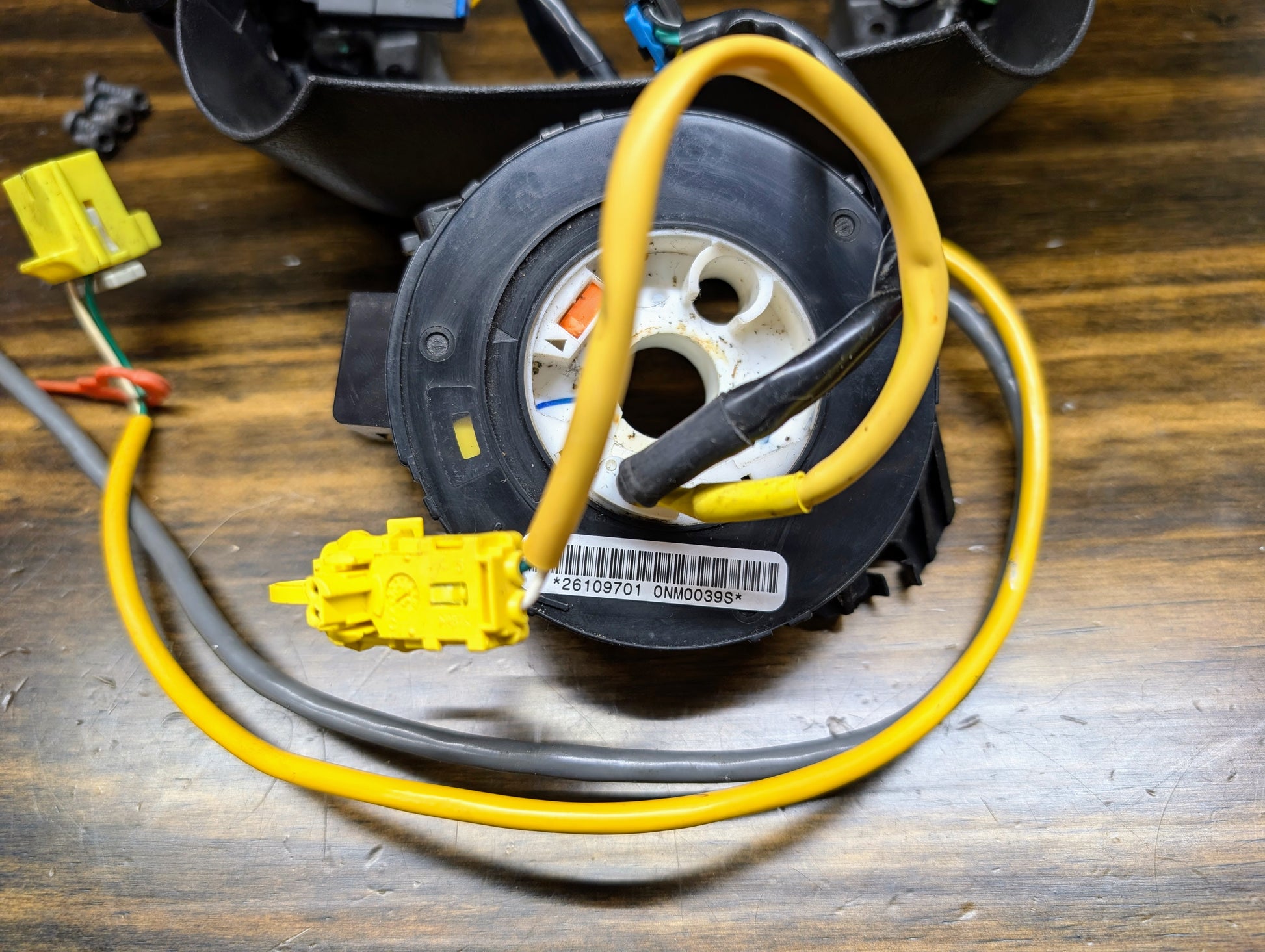

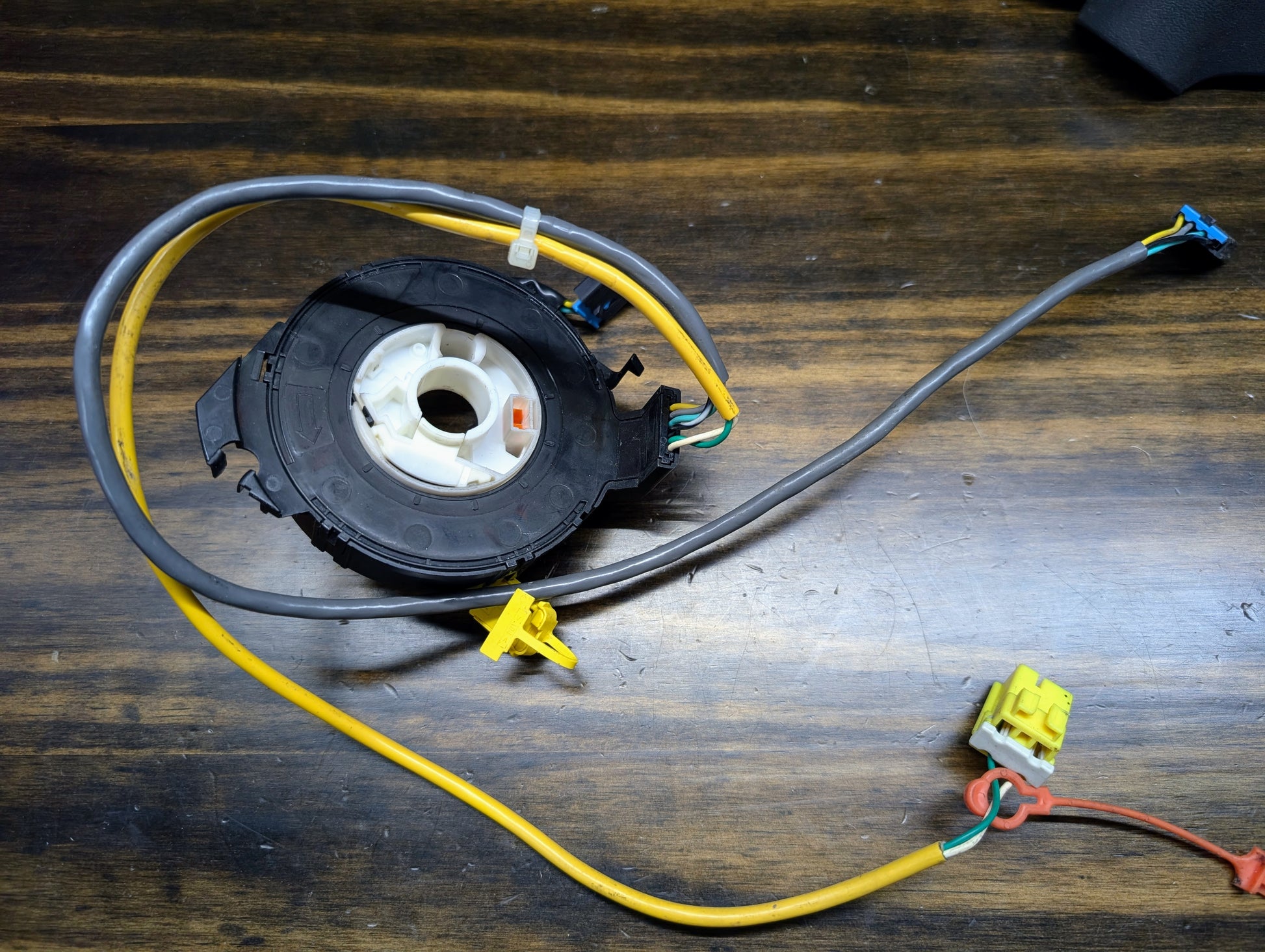

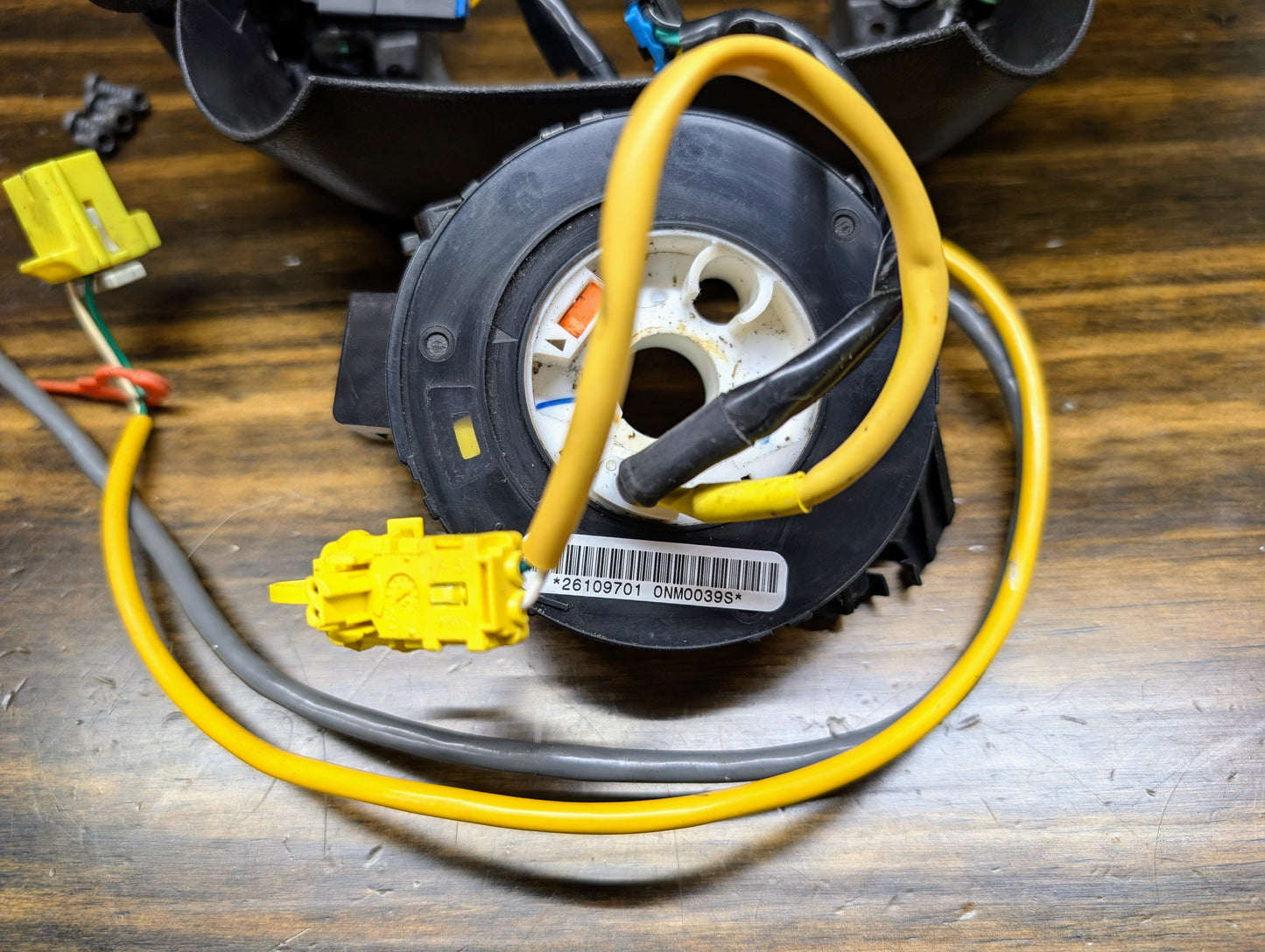

  • Air Bag Clock Spring w/radio control wiring

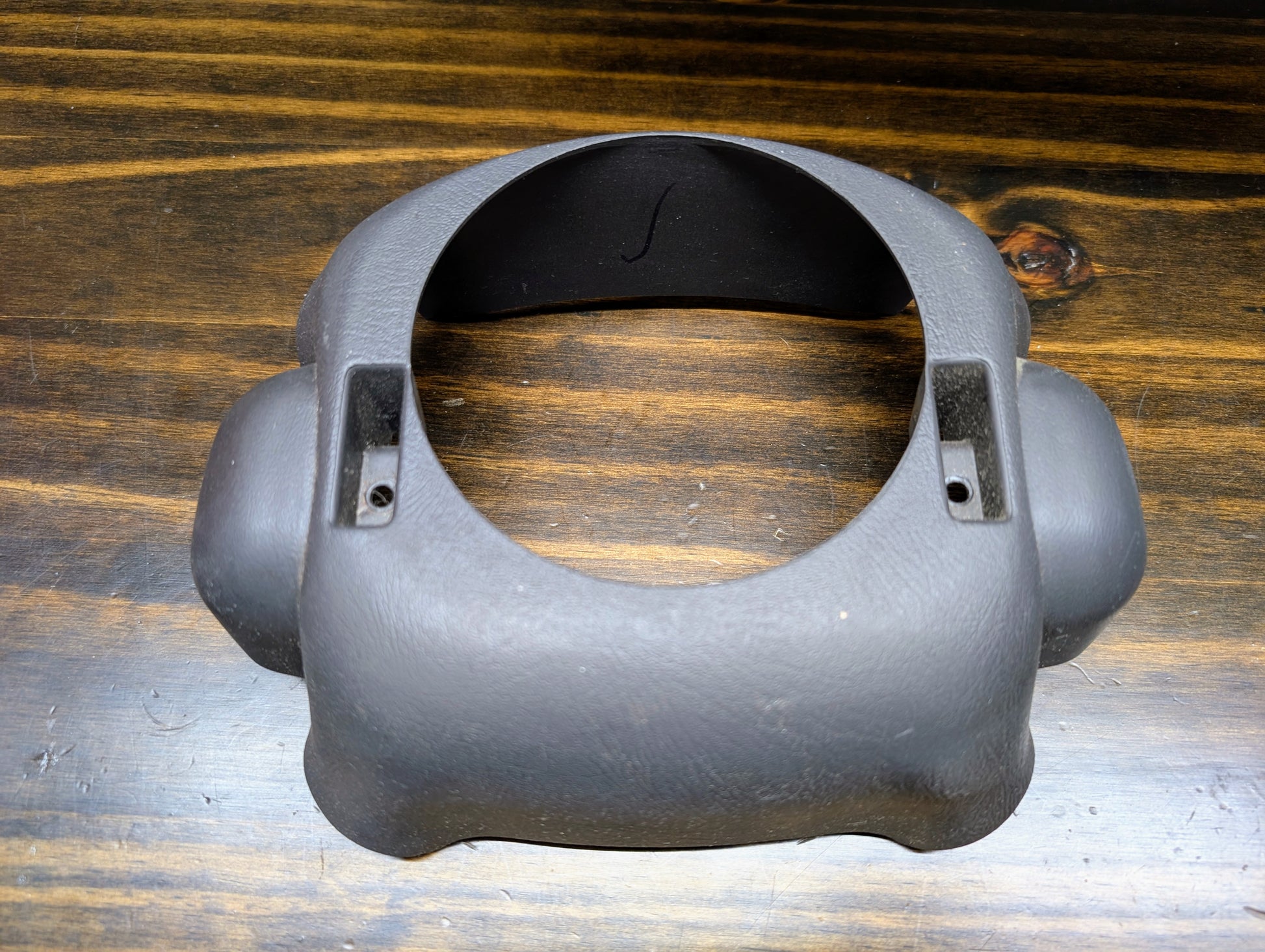

  • Steering Wheel Backing Plate w/extensions for radio buttons
  • Radio Control Buttons w/wiring

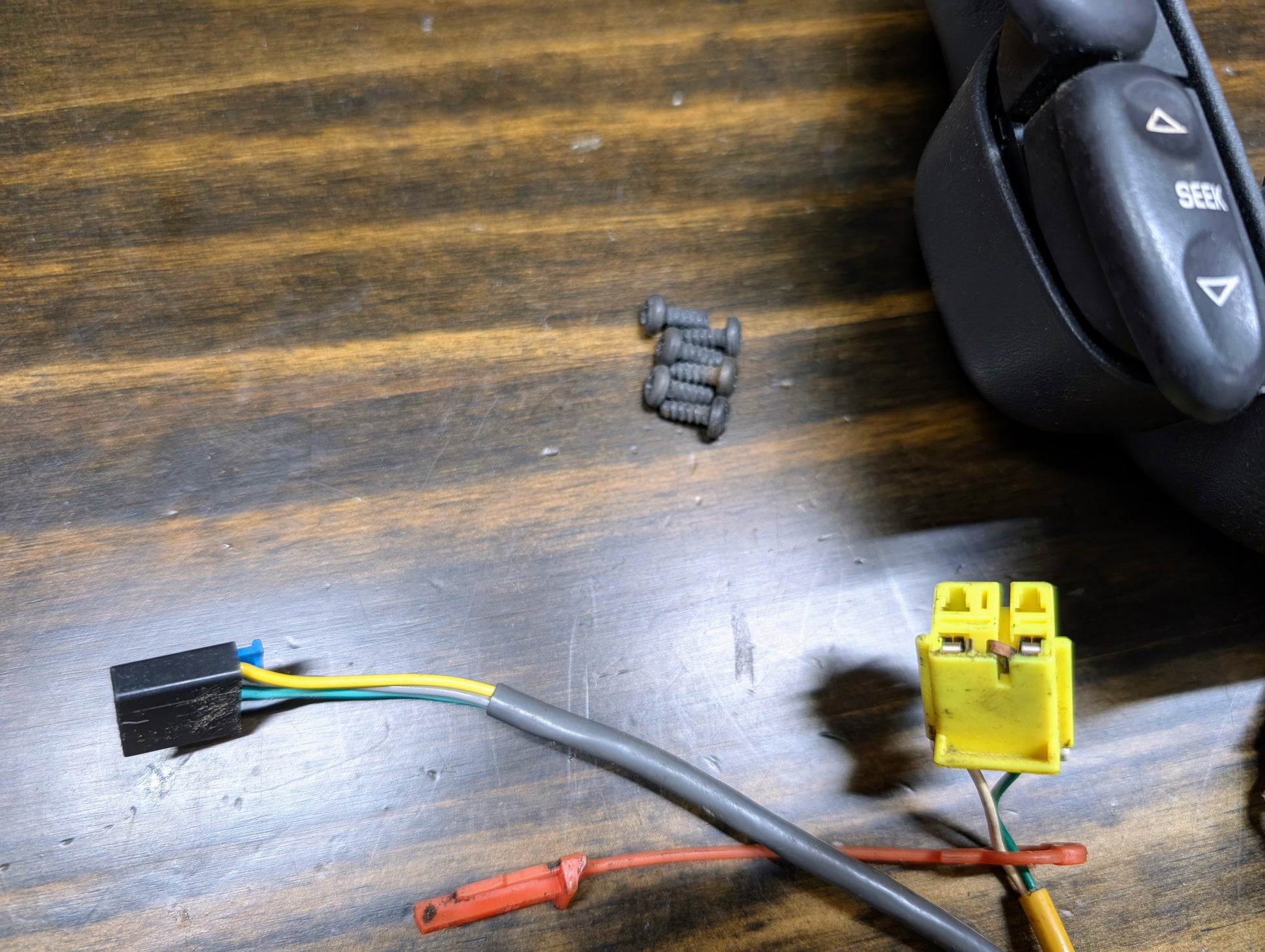

  • Fasteners to mount Controls to Steering Wheel

This kit can be adapted to the following trucks

  • 2004 - 2005 Chevrolet Blazer
  • 2004 Chevrolet S10
  • 2004 - 2005 GMC Jimmy
  • 2004 GMC Sonoma

This may also work on the 1999 - 2003 model years, but I cannot guarantee that as they used different part numbers for the clock spring.

I have these on-hand and ship quickly. Typically, 3-5 days to your door or less in the continental US.

Check out my other listings for more S10 switches and other parts.
